Decorating

Decorating

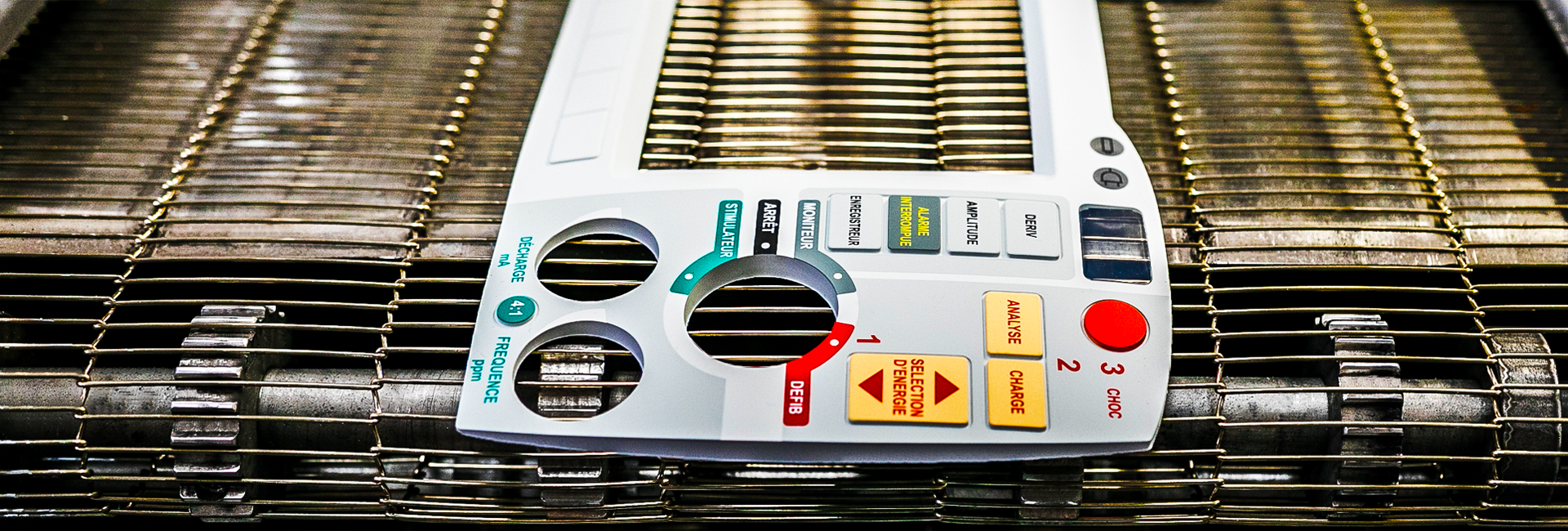

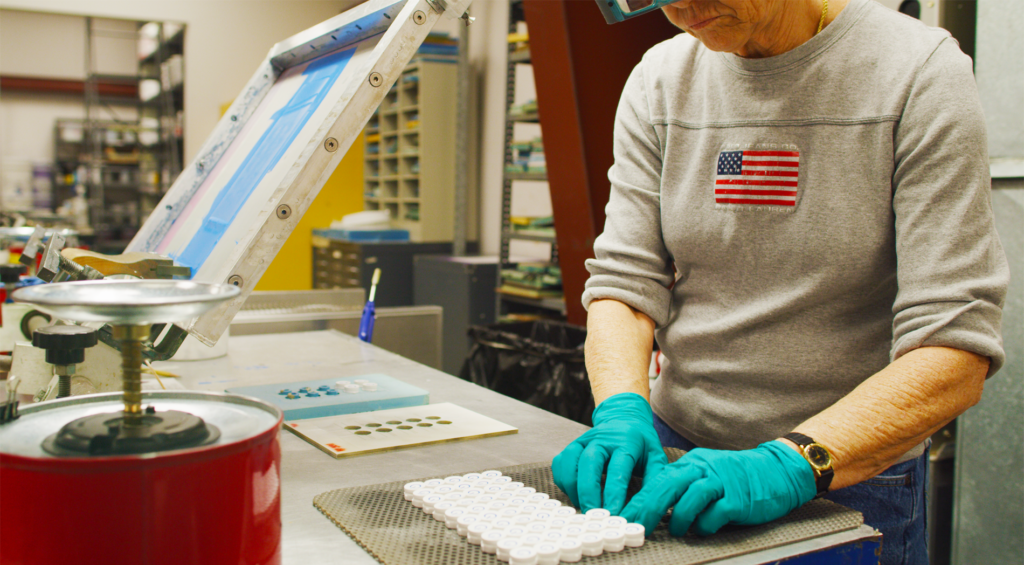

Screen Printing: Here at SiTech, all of our positive and reverse graphics are done using screen printing. We use our proprietary silicone inks that create a cross-link bond to the silicone rubber keypads and components during the curing process. This makes a hard-wearing and long lasting graphic that will last the lifetime of your keypad under normal industry circumstances. Visually aesthetic graphics can have a large influence on how users feel about your product. A well designed keypad enhances not only the appearance of your product, but can also enhance the functionality of it as well. Below are a few recommendations we frequently give to enhance the design of your silicone rubber keypad and the graphics you intend to have applied.
Embossing & Engraving:
One of the easiest ways to decorate a silicone rubber keypad or component is to add embossing, or engraving to the component, or key’s surface. This is done by simply adding the image or text to the mold so it either engraves or embosses the surface of the silicone. One advantage of using this method is that the embossing or engraving will last the lifetime of the keypad. A disadvantage of using this method is the area of the embossment or engraving allows for dirt and debris to easily become trapped. Some limitations for designing this method include a minimum line weight of 0.015”. And a maximum height or depth of 0.012”. SiTech has the capability to accept graphic designs in the following formats:
  • *.ai (Adobe Illustrator)
  • *.cdr (Corel Draw)
  • *.pdf (Adobe)
  • *.dwg (Autocad)
  • *.dxf (Autocad)
Graphic Design Considerations:
  • Solid colors can be screened up to the edge of a flat keytop.
  • On curved keytops, solid colors can be screened up to 0.015” to the tangent point of the outer radius.
  • The minimum distance from the edge of a keypads mat to a legend is 0.015”.
  • The minimum line weight for a legend is 0.010”.
  • The minimum text height is 0.050”.
  • The minimum radius of a concave or convex keytop is 0.375”.
  • The maximum curvature depth for concave keytops with a minimum radius of 0.375” is 0.060”.
  • The maximum curvature height for convex keytops with a minimum radius of 0.375” is 0.060”.

With over 75 years of experience in silicone keypad design and molding, we are committed to providing complete customer satisfaction with the highest quality products in a successful and timely manner. The customer is and has always been the focus of our business.
